VX open winch hoists with capacities up to 250 Tons
for the most demanding lifting applications


Every industry requires something different and special processes often require additional equipment, features or safety mechanisms. If your application requires something more demanding, our VX open winch hoist is the perfect solution and combines the latest innovations in control systems with traditional heavy-duty engineering.The rugged design of the VX has a proven pedigree and excels where customer specifications require a unique heavy-duty lifting solution.

Custom engineered to suit your lifting application


Street Crane has more than seven decades of experience designing and manufacturing hoists for the more extreme applications. The VX hoist is a product of that pedigree and epitomises the special performance levels we can offer those customers who have the most exacting requirements. The VX hoist is a modular concept which uses pre-engineered components in both standard and customised formats to provide high-performance and high-reliability for a very wide range of demanding applications where one or more of the following are required:

​

VX Application range

  • Capacities up to 250 tonnes (275 US Tons).

  • Duty classifications up to ISO M8/CMAA CLASS F.

  • Superfast hoisting speeds.

  • Super-high lifts.

  • Increased factors of safety.

  • Extremely arduous environments.

  • Additional safety and operating equipment.

  • Special hoist constructions.

​

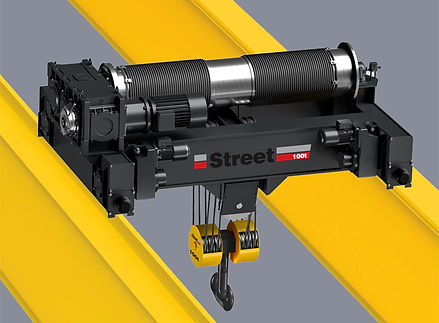

Street VX 100T - 20T.jpg

When productivity and safety are the priority



The modular concept of the VX hoist enables us to provide a cutom-built solution from
pre-engineered components.

​

VX hoist standard features include:

  • True Vertical Lift (Zero hook drift over the full lifting height) rope reeving with no rope guides.

  • A hoist gearbox brake which holds the load even if the hoist motor is removed

  • All hoist gears including final hoist reduction in the gearbox with oil bath lubrication

  • Hoist gearbox cover allows inspection of gears without dismantling the hoist

  • External removable fan-cooled motors with cooling fins on all motions

  • Step-less speed control on hoists and travel motion

  • A heavy-duty open winch hoist which is more robust than a standard hoist

​
